ValvCheq RP03 Backflow Device (Reduced Pressure Zone)

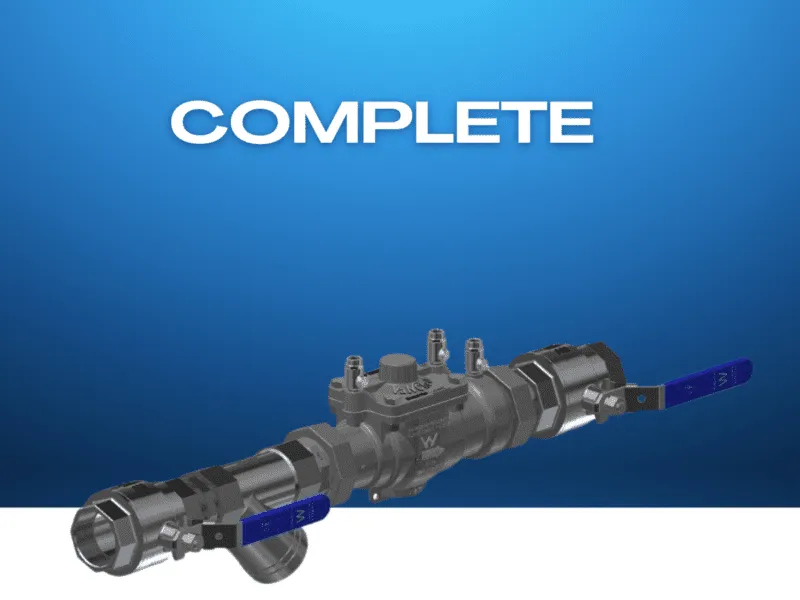

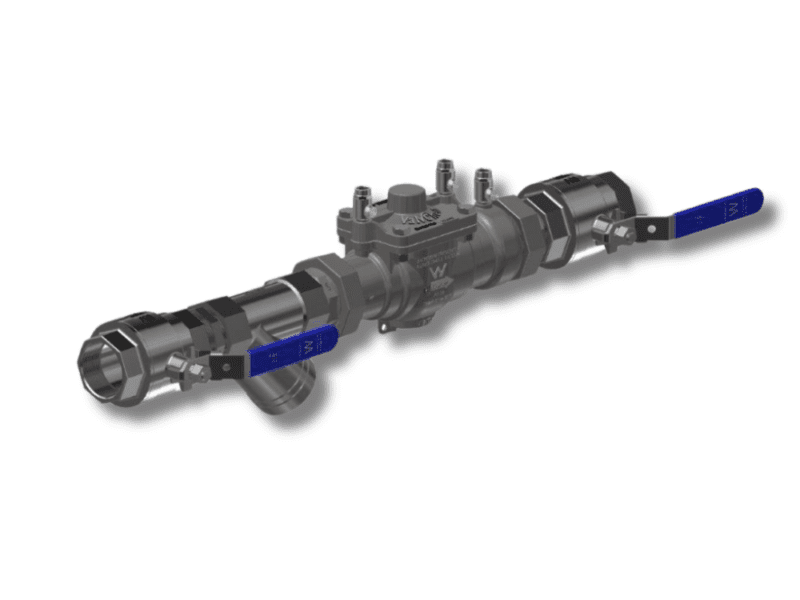

Complete Device - Stainless Steel Body, Unions, 2 x Ball Valves and 1 x Strainer.

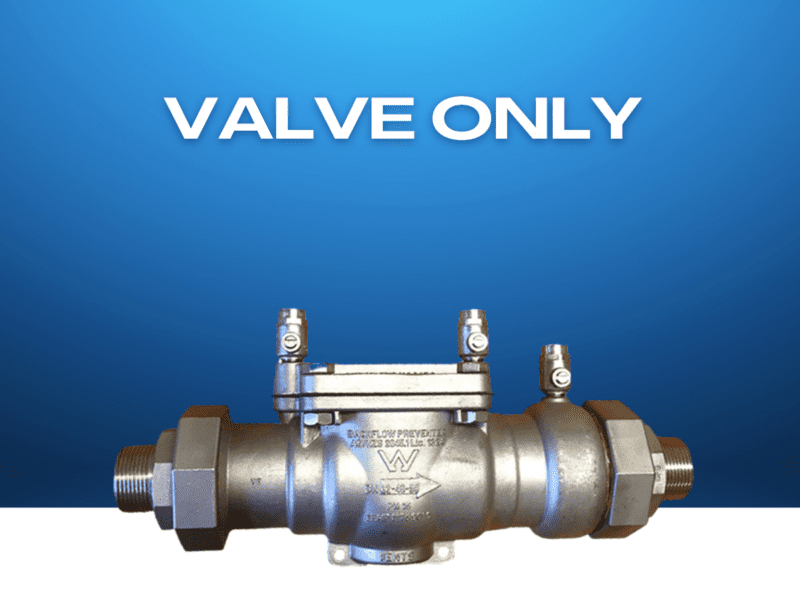

Valve Only Device - Stainless Steel Body, Unions. No Ball Valves or Strainer.

Features

• Watermarked

• Lightweight compact Backflow design.

• In-line and on-site serviceable.

• No special tools required for servicing.

• Approved for hot water service up to 90ºC.

• Maintenance friendly with one seal kit suitable for six valves.

• Designed and manufactured in accordance with AS/NZS 2845.1.

• Straight through flow path for maximum flow co-efficient.

• Top entry allows all parts to be accessed easily.

• Stainless steel main valve and internals for superior corrosion resistance.

• Fully restrained check valve assemblies for unrivalled safety.

• Every valve is bench tested and tracked with unique serial number.

• All internal components are repairable or replaceable.

• Conforms to testing requirements of AS/NZS 2845.3.

• Anti-tamper test taps.

• Unique “ring and tail” connections conforming with Australian and International standards replacing conventional compression fittings.

• All bolting internal and external is stainless steel.

• Design conforms to all major international standards.

• Recommended for horizontal installation only.
