ValvCheq DC03 Small Valves

Name: ValvCheq DC03 Small Valves
SKU: 342

$0.00

Double check valves for medium hazard rated applications BSP screwed connections

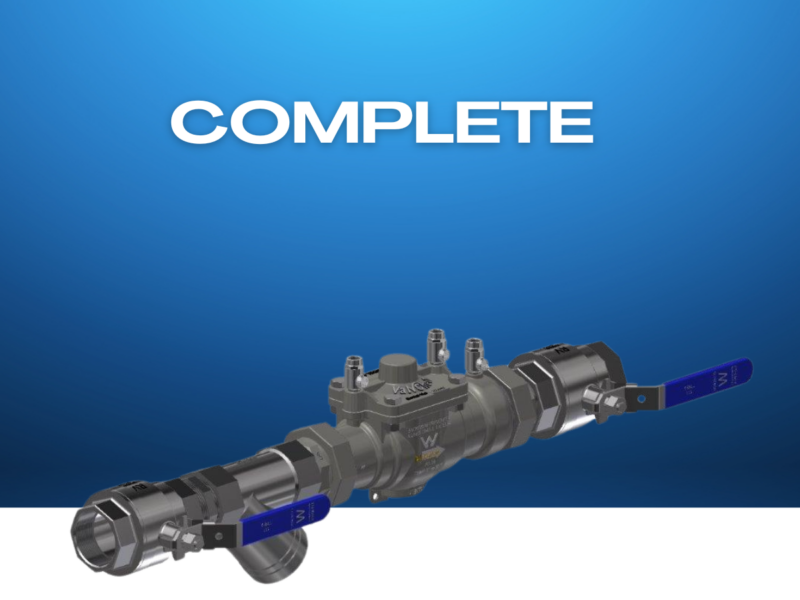

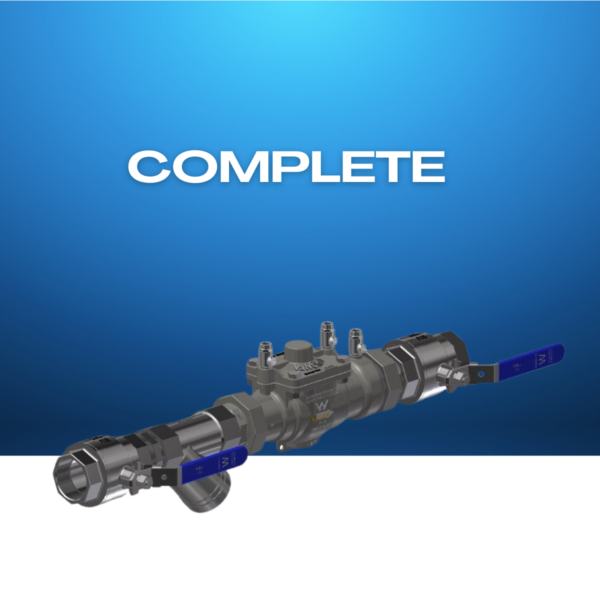

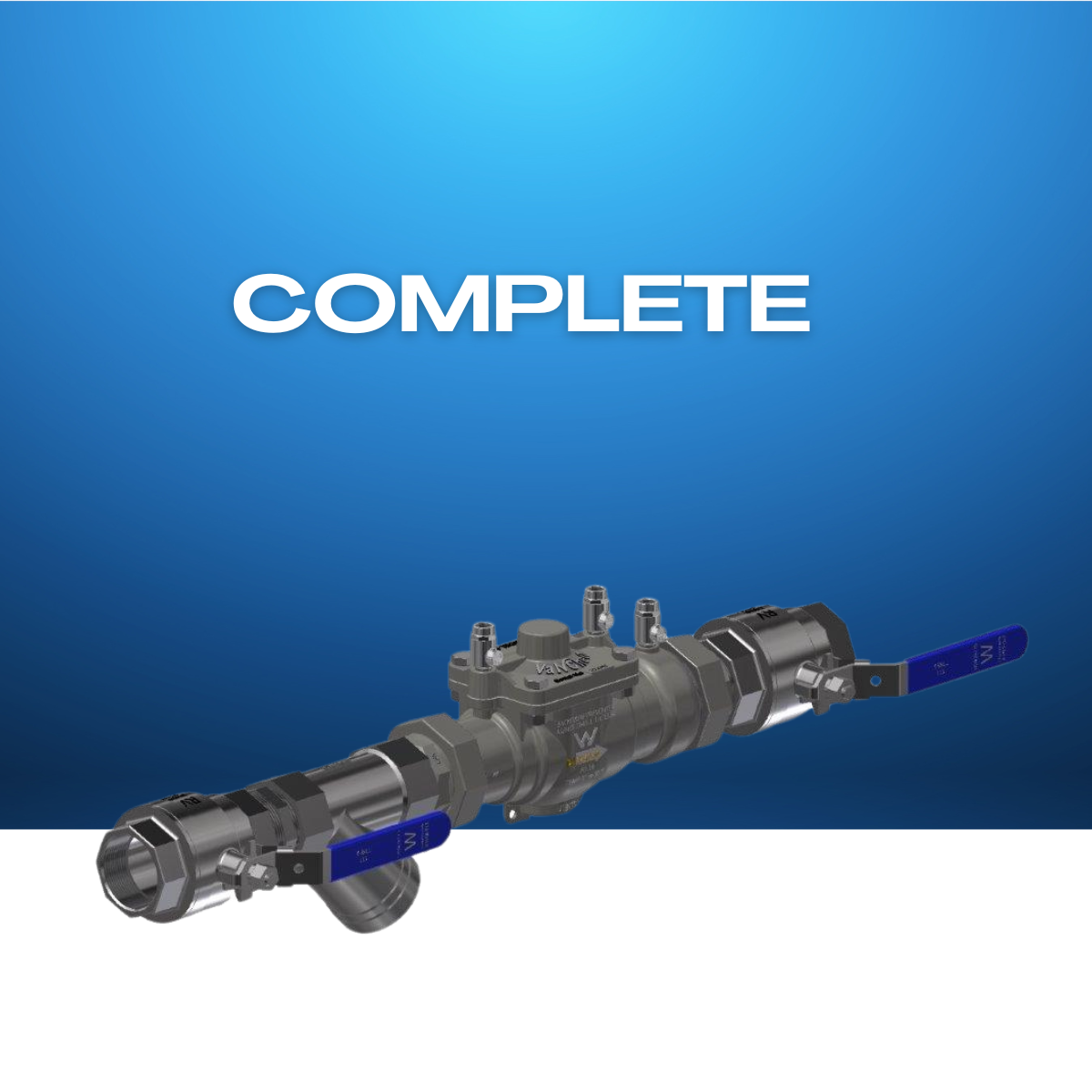

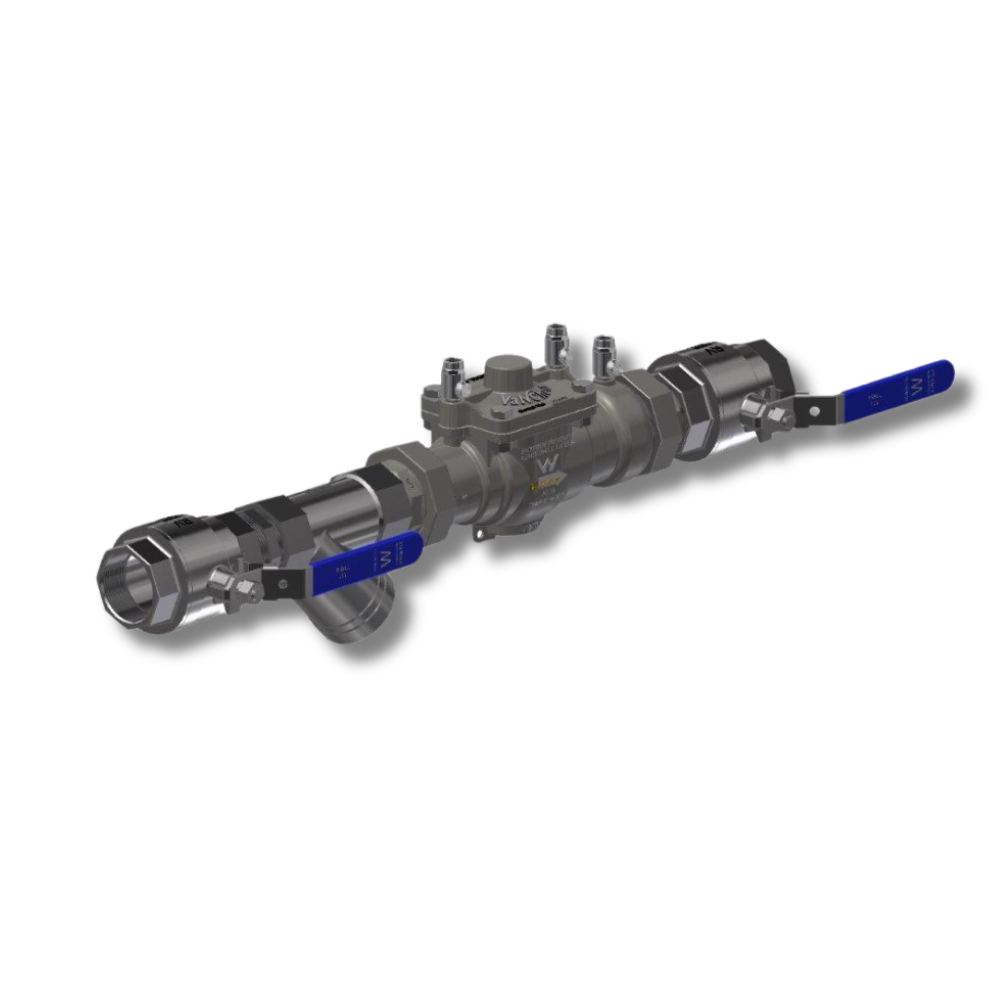

Complete version - comes with stainless steel body, unions, ball valves and strainer

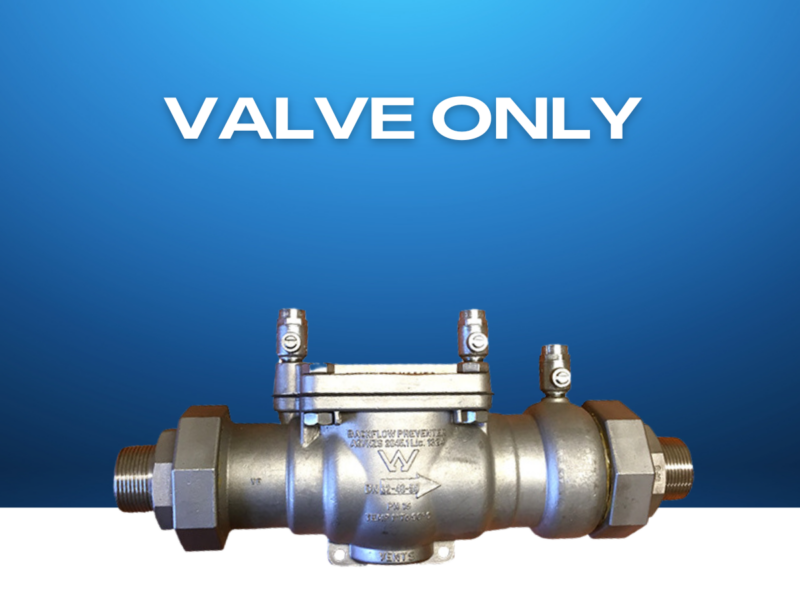

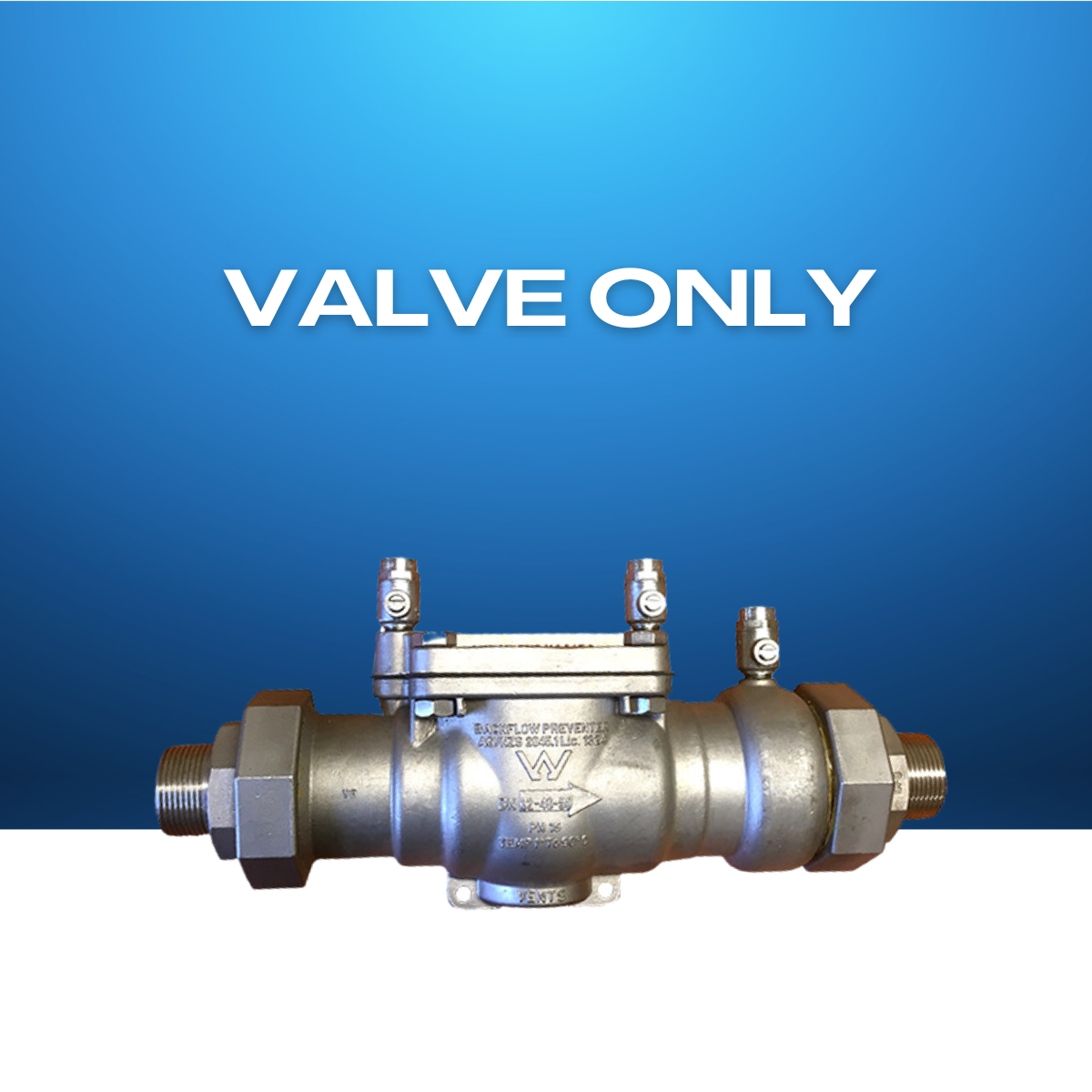

Valve Only Version - Body and Unions only.

Watermarked
Lightweight compact design.
In-line and on-site serviceable.
No special tools required for servicing.
Approved for hot water service up to 90ºC.
Maintenance friendly with one seal kit suitable for six valves.
Designed and manufactured in accordance with AS/NZS 2845.1.
Straight through flow path for maximum flow co-efficient.
Top entry allows all parts to be accessed easily.
Stainless steel main valve and internals for superior corrosion resistance.
Fully restrained check valve assemblies for unrivalled safety.
Every valve is bench tested and tracked with unique serial number.
All internal components are repairable or replaceable.
Conforms to testing requirements of AS/NZS 2845.3.
Anti-tamper test taps.
Unique “ring and tail” connections conforming with Australian and International standards replacing conventional compression fittings.
All internal and external bolting is stainless steel.
Design conforms to all major international standards.
Installations can be vertical and horizontal.

Part Number	Description		Quantity
2041801	15mm DC03 Complete with SS Ball Valves and SS Strainer
2038117	20mm DC03 Complete with SS Ball Valves and SS Strainer
2021342	25mm DC03 Complete with SS Ball Valves and SS Strainer
2032935	32mm DC03 Complete with SS Ball Valves and SS Strainer
2012340	40mm DC03 Complete with SS Ball Valves and SS Strainer
2036464	50mm DC03 Complete with SS Ball Valves and SS Strainer
2021092	15mm DC03 Valve Only
2040769	20mm DC03 Valve Only
2043520	25mm DC03 Valve Only
2009500	32mm DC03 Valve Only
2024101	40mm DC03 Valve Only
2003122	50mm DC03 Valve Only

Complete version – comes with stainless steel body, unions, ball valves and strainer
Valve Only Version – Body and Unions only.

Watermarked
Lightweight compact design.
In-line and on-site serviceable.
No special tools required for servicing.
Approved for hot water service up to 90ºC.
Maintenance friendly with one seal kit suitable for six valves.
Designed and manufactured in accordance with AS/NZS 2845.1.
Straight through flow path for maximum flow co-efficient.
Top entry allows all parts to be accessed easily.
Stainless steel main valve and internals for superior corrosion resistance.
Fully restrained check valve assemblies for unrivalled safety.
Every valve is bench tested and tracked with unique serial number.
All internal components are repairable or replaceable.
Conforms to testing requirements of AS/NZS 2845.3.
Anti-tamper test taps.
Unique “ring and tail” connections conforming with Australian and International standards replacing conventional compression fittings.
All internal and external bolting is stainless steel.
Design conforms to all major international standards.
Installations can be vertical and horizontal.
