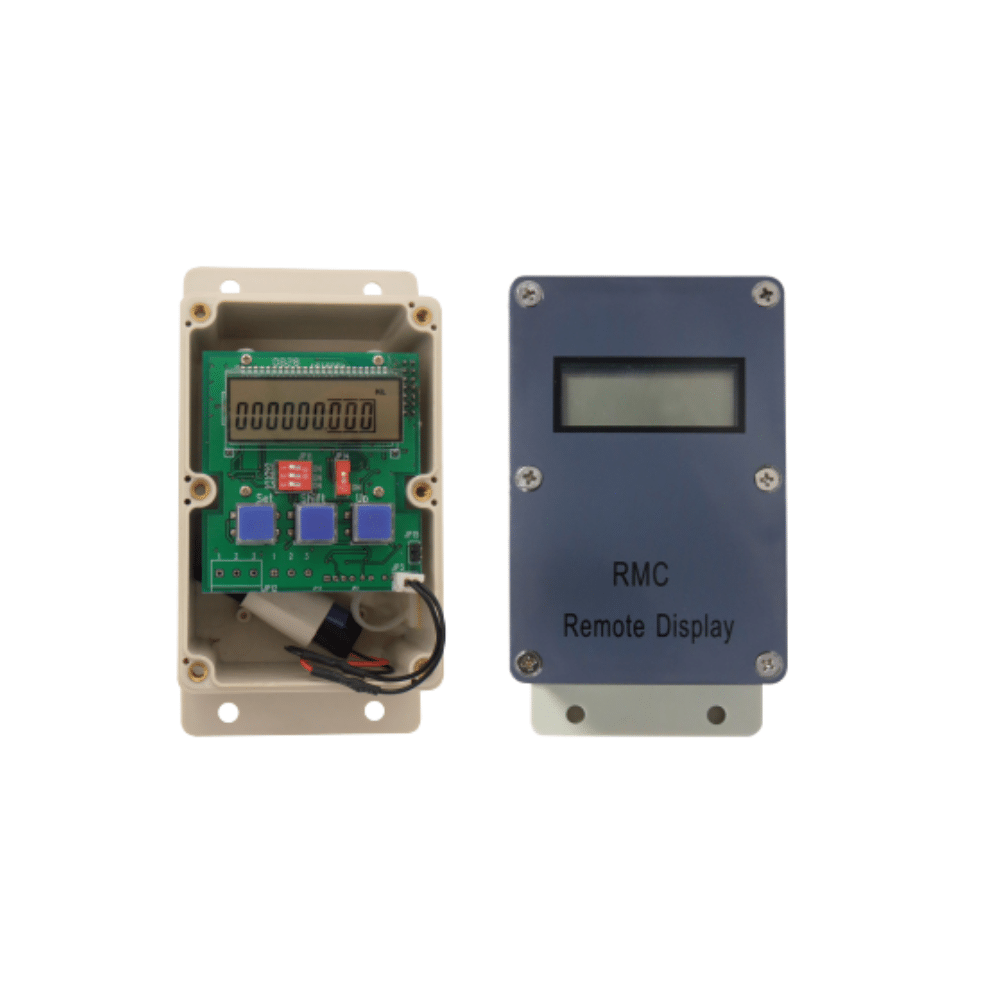

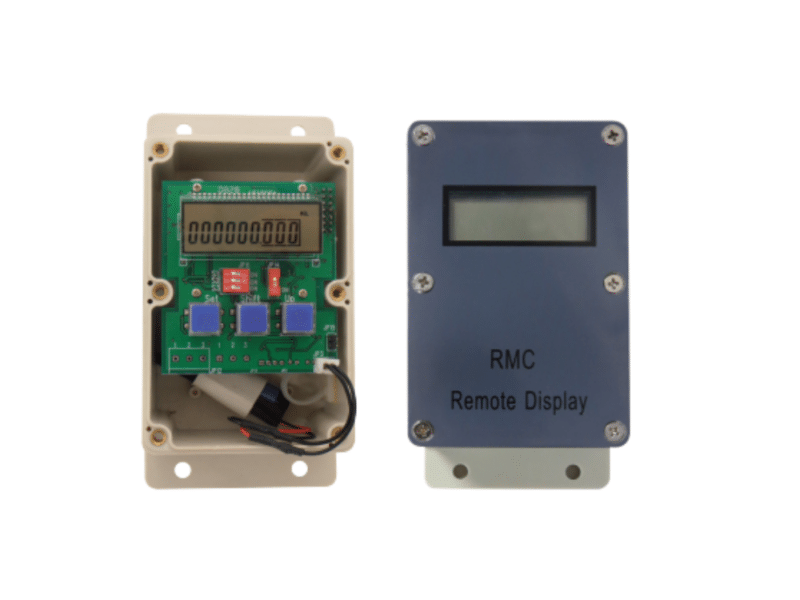

Flexi Reader Remote Display Unit
The Flexi Reader remote water meter display is an inexpensive and reliable remote display unit for reading water meters. Programmable pulse rate and the ability to enter the existing water meter reading this remote display is ideal for water meters in hard-to-reach locations or to simply bank all your water meter readers into a central location. The standard version features a 1-year battery life with a replaceable lithium battery while the enhanced version uses a larger D cell battery giving you up to 7 years of battery life.
Features
• Reduced Meter Reading Costs
• Compatible with most dry contact (voltage free) meter or sensor outputs
• Compatible with most dry contact (voltage free) meter or sensor outputs
• IP 65 Rated Housing
• Configurable to a wide range of pulse rates from 0.5L to
1000L pulses
• Battery Life – 1 years Standard Version – 7 years Enhanced Version*
• Operates at -22°F to +158°F (-30°C to +70°C)
• Display Meter Reading
• Holds last read value
• 9 digits displayed
• Installed away from pit meters improving access safety
• Onsite programmable using buttons. No programming tool required.
1000L pulses
• Battery Life – 1 years Standard Version – 7 years Enhanced Version*
• Operates at -22°F to +158°F (-30°C to +70°C)
• Display Meter Reading
• Holds last read value
• 9 digits displayed
• Installed away from pit meters improving access safety
• Onsite programmable using buttons. No programming tool required.
* Battery life is an estimated value based on standard usage practices.
Overview
The Flexi Reader remote water meter LCD Display is configurable to accept a full range of dry contact pulses from any mechanical meter.
The pulse input configuration is set via the internal IP switches.
In addition to being able to configure the pulse rate, the start reading on the LCD can also be set to match the actual reading
on the mechanical meter. This is accomplished via Set buttons inside the casing.
on the mechanical meter. This is accomplished via Set buttons inside the casing.
Cabling
Use a single twisted pair from a CAT5 (or similar) network cable to prevent interference. Cable to cable
connections must be made using a sealed “scotch lock” connector (or similar)
connections must be made using a sealed “scotch lock” connector (or similar)
Compatibility
The Flexi Reader remote water meter display is compatible with the following meters on our site.
