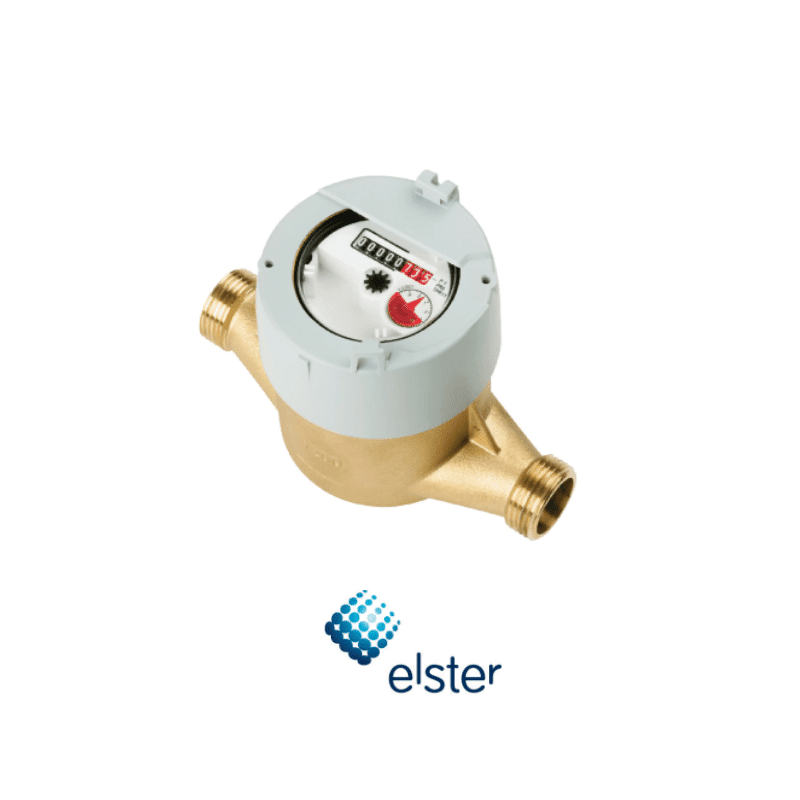

Elster / Honeywell V200 Water Meter

The V200 meter is designed for the measurement of cold potable water
offering outstanding accuracy, long-term maintenance free working life and
is highly resistant to tampering. The robust brass meter housing is supplied
with a fine filter and dual check valve assembly compliant with AS/NZS
2845.1, being fitted to the 20mm & 25mm meters. For the 32mm & 40mm
sizes, a reverse flow restrictor is used. V200 meters are approved to a T30
limiting condition (water temperature) of 50°C and a maximum admissible
pressure of 1600 kPa. Standard counter registration is in kilolitres and litres
with every meter individually tested for accuracy in accordance with NMI
NITP14 National Instrument Test Procedures for Utility Meters.
The V200 meets the Metrological and Technical requirements of NMI R49-1,
and is JAS-ANZ certified to AS 3565.1 by Global-Mark Pty Ltd. Pattern
Approval has been granted by the National Measurement Institute (NMI)
under Certificate of Approval No’s: 14/3/1, 14/3/11, 14/3/12 and 14/3/18.

Elster / Honeywell V200 Water Meter sizes

Available in a range of sizes and connections from 20mm - 40mm.

20mm to 25mm use Threaded Couplings. NSW (ball face), Meter Thread and BSP Thread.

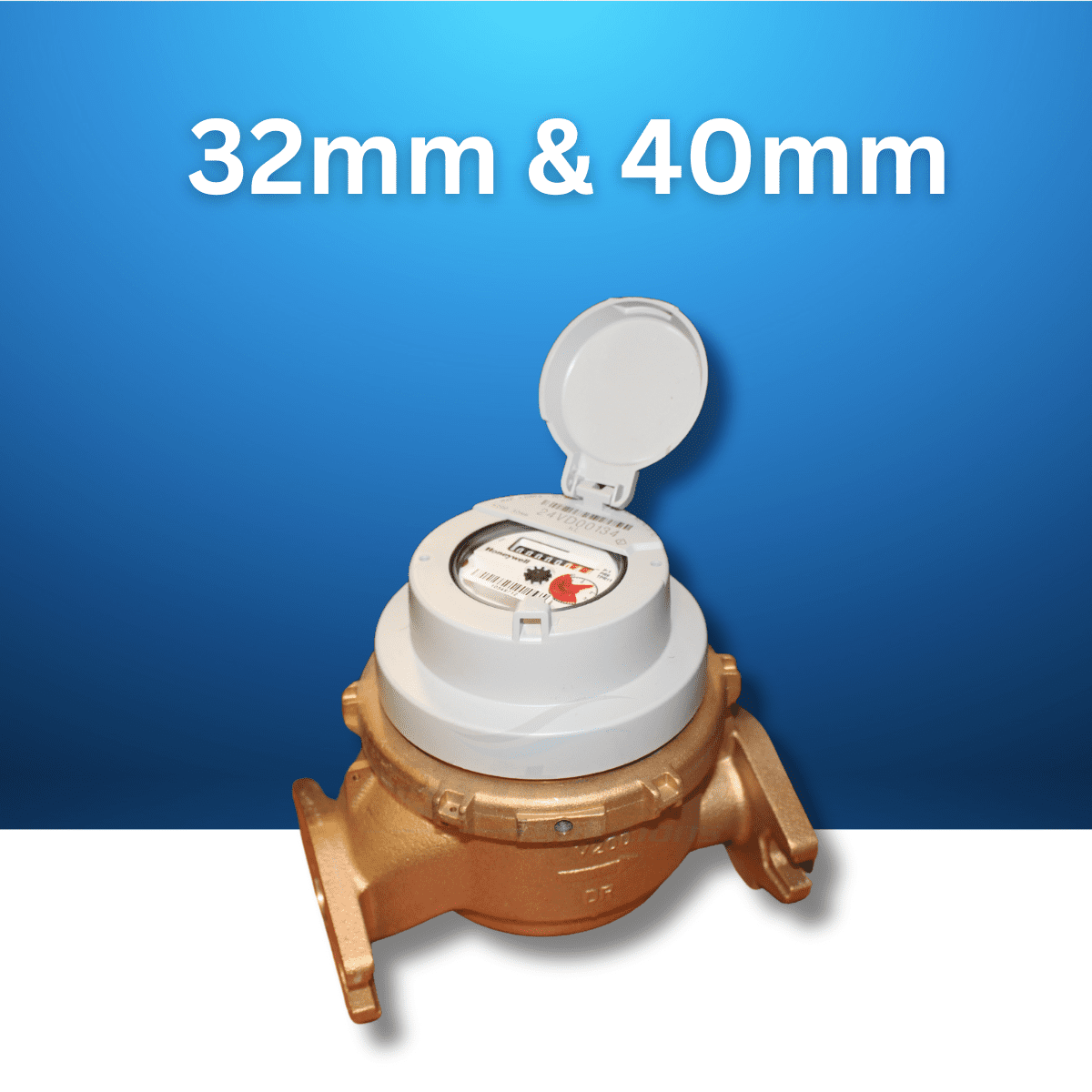

32mm-40mm have an oval flanged body and come with a flange kit with female BSP thread connection.

Features

• Positive displacement volumetric
  principal of measurement ensures
  registration even at the very lowest
  rates of flow with maintained
  accuracy over the flow range.
• Volumetric rotary piston design permits
  optimum performance in horizontal,
  vertical or inclined pipelines without
  affecting accuracy.
• Requires no calibration throughout
  its lifespan.
  eSens Inductive register for improved
  output performance and security.
  The register can be rotated 359° .

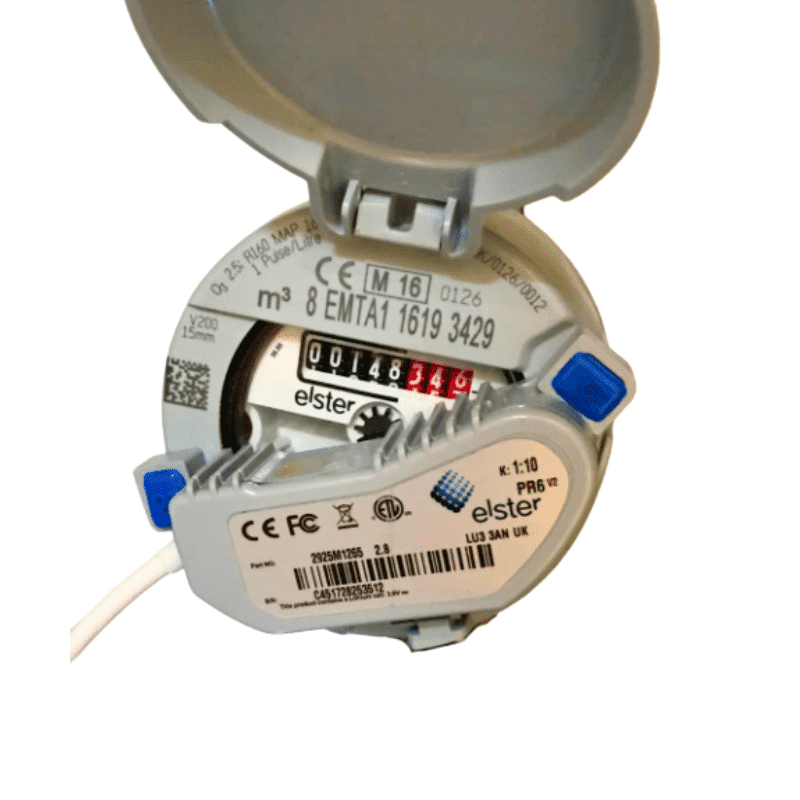

• Optional PR6 bi-directional, two
  channel pulse transmitters can be
  fitted to the inductive register.
• Use of advanced engineered plastics
 for the measuring chamber minimises
  wear and maintains reliability under
  all operating conditions.
• “O” ring sealing ensures that internal
   Leaks that could by-pass the measuring
  chamber are eliminated.
• A leak indicator is fitted as standard.
• 20mm & 25mm meters can be supplied
  with various standard connections
  (e.g. nut and tail, ball joint, etc.).
• 32mm & 40mm meters have oval
  flanged connections

Approvals

The Elster / Honeywell V200 water meter is NMI R-49-1 approved and Watermarked, making it compliant with the Australian Plumbing code and suitable billing. It is also AS2345 compliant.

Connectivity with AMR Systems and Remote Reading

Connectivity to an electronic reading system by using the PR6 Inductive Pulser.
