Elster M190 Hot Water Multi-jet meter

$0.00

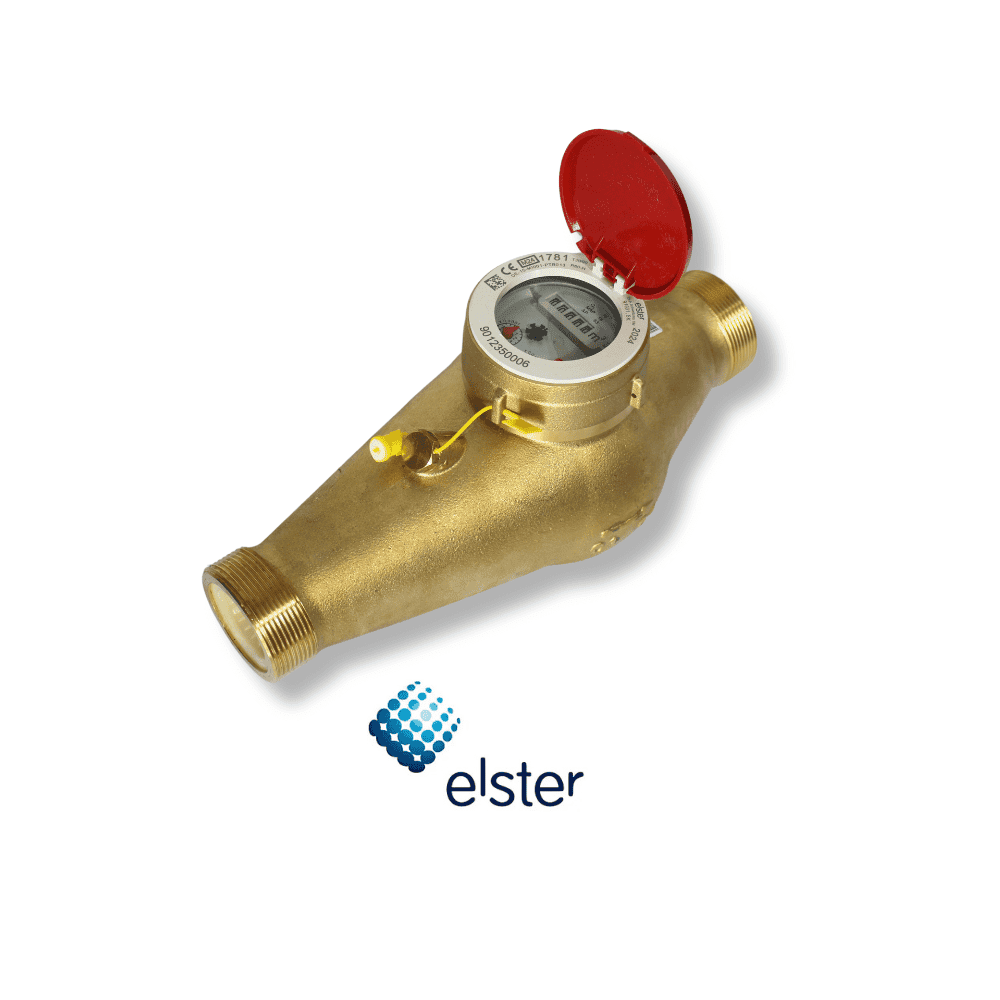

Elster M190 (MTHR) Warm Water Meter

The Elster M190 is a multi-jet warm water meter with a dry register.
It operates on the velocity principle in which water enters the measuring chamber through a number of ports and drives the inner rotor.
Supplied with a factory fitted reed switch pulse output as standard.

This meter is generally used in heating and industrial applications.

Features

  • Nominal size Q3 2.5 to 25 m3/h
  • Hard bearings on impeller and magnet drive
  • Register resistant against ultraviolet light
  • Prepared for retrofit pulse unit
  • conText®-marking system
  • 16 Bar Max
  • 90C Max Temp
  • Pulse Ready

Standards

  • MID 2004/22/EC
  • EU-type examination certificate up to R80



Part Number Description Size Quantity
LA0006780 M190 Meter Kit x 190mm long, QN2.5, G1B, (1P / 100L) 20mm

LA0006783 M190 Meter Kit x 260mm long, QN3.5, G1¼B, (1P / 100L) 25mm

LA0006788 M190 Meter Kit x 260mm long, QN6, G1½B, (1P / 100L) 32mm

LA0006790 M190 Meter Kit x 300mm long, QN10, G2B, (1P / 100L) 40mm

LA0006793 M190 Meter Kit x 270mm long, QN15, G2½B, (1P / 100L) 50mm

LA0000998 M190 Reed Disc Pulser c/w 3m cable (1P / 100L) ALL
