ARAD Woltman Silver Turbo (WST)

$0.00

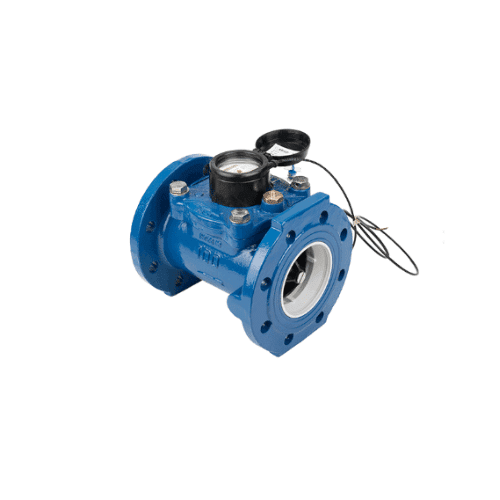

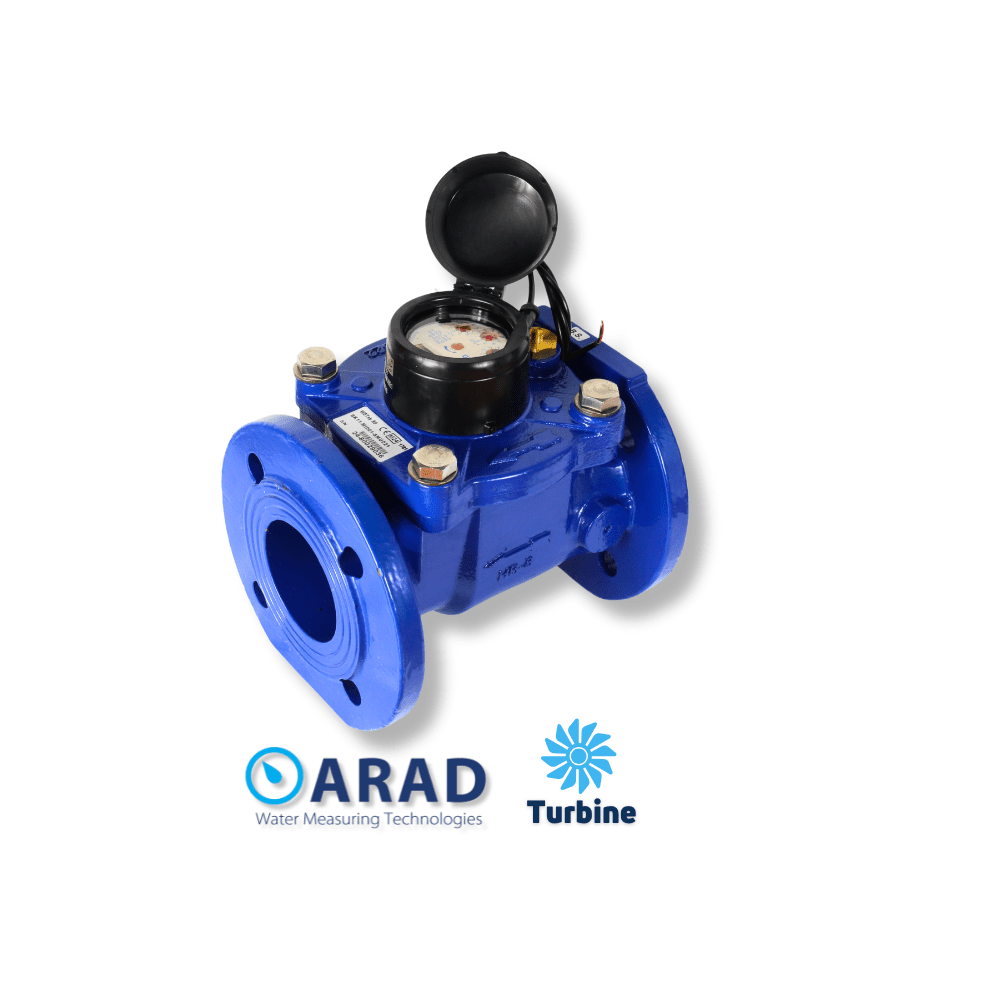

ARAD WST- Woltman Silver Turbo

The ARAD WST water meter implements
advanced methods and technologies to deliver a
robust, accurate and reliable water meter with a fantastic reputation in the
Australian market.

This Pattern approved this meter is a must have for installations
requiring Murray Darling Basin Pattern Approvals.

The ARAD WST Water Meter features an integrated pulse kit as standard ensuring
your meter is ready for future smart metering applications.

ARAD WST Features

  • Pattern Approved for the Murray Darling Basin
  • The Woltman Silver Turbo (WST) has a wide measuring
    rate that enables it to serve in broad applications and in
    extreme situations (low flows and high flows).
  • Not sensitive to tough working conditions like vibrations.
  • Resistant humidity conditions (even if dry chamber is full of water).
  • The worm assembly is available in a separate kit, which enables
    easy replacement if necessary.
  • Resistance – bearings and materials used in the WST are proven
    to ensure long life expectancy.
  • Magnetic Coupling – the WST has a unique measuring unit, with
    only one moving element in contact with water, and has repelling
    magnets installed in the impeller and the transmitting gear, instead
    of the attracting magnets installed in the WT.
  • The implementation of oil and sliding bearing (SB) further enhances the WST's durability.

Pulse Kits for older non integrated ARAD WST water meters can be found here

Who is ARAD?

Established in 1941, Arad Ltd. specializes in innovative water measurement technologies. Today the Arad Group is comprised of seven business divisions operating on four continents and serving utility and water companies in more than sixty countries.

How many meters do they produce?

Millions of its water meters are installed worldwide and the company has already sold more than three million smart meters, making it a world leader in advanced measuring solutions.

How is the Quality?

To maintain its leading position, the Arad Group is committed to investing a large proportion of its annual revenues in R&D, thus ensuring that its customers benefit from the most advanced solutions available in the market.

ARAD's quality system is certified to ISO 9001:2000, ISO 14000, ISO 18001, ISO 17025, and their products hold the CE mark.

ARAD Website Link

Part Number Description Size Quantity
WM500WST ARAD Woltman Silver Turbo (ISO) 200mm Length 50mm (2")

WM650WST ARAD Woltman Silver Turbo (ISO) 200mm Length 65mm (2 1/2")

WM800WST ARAD Woltman Silver Turbo (ISO) 230mm Length 80mm (3")

WM1000WST ARAD Woltman Silver Turbo (ISO) 250mm Length 100mm (4")

WM1500WST ARAD Woltman Silver Turbo (ISO) 300mm Length 150mm (6")

WM2000WST ARAD Woltman Silver Turbo (ISO) 350mm Length 200mm (8")

WM2500WST ARAD Woltman Silver Turbo (ISO) 450mm Length 250mm (10")

WM3000WST ARAD Woltman Silver Turbo (ISO) 500mm Length 300mm (12")

WM501WST ARAD Woltman Silver Turbo Australian Length 311mm 50mm (2")

WM801WST ARAD Woltman Silver Turbo Australian Length 413mm 80mm (2 1/2")

WM1001WST ARAD Woltman Silver Turbo Australian Length 483mm 100mm (4")

WM1501WST ARAD Woltman Silver Turbo Australian Length 500mm 150mm (6")

WM2001WST ARAD Woltman Silver Turbo Australian Length 520mm 200mm (8")

.
