ARAD WST – Pulse Kit

$0.00

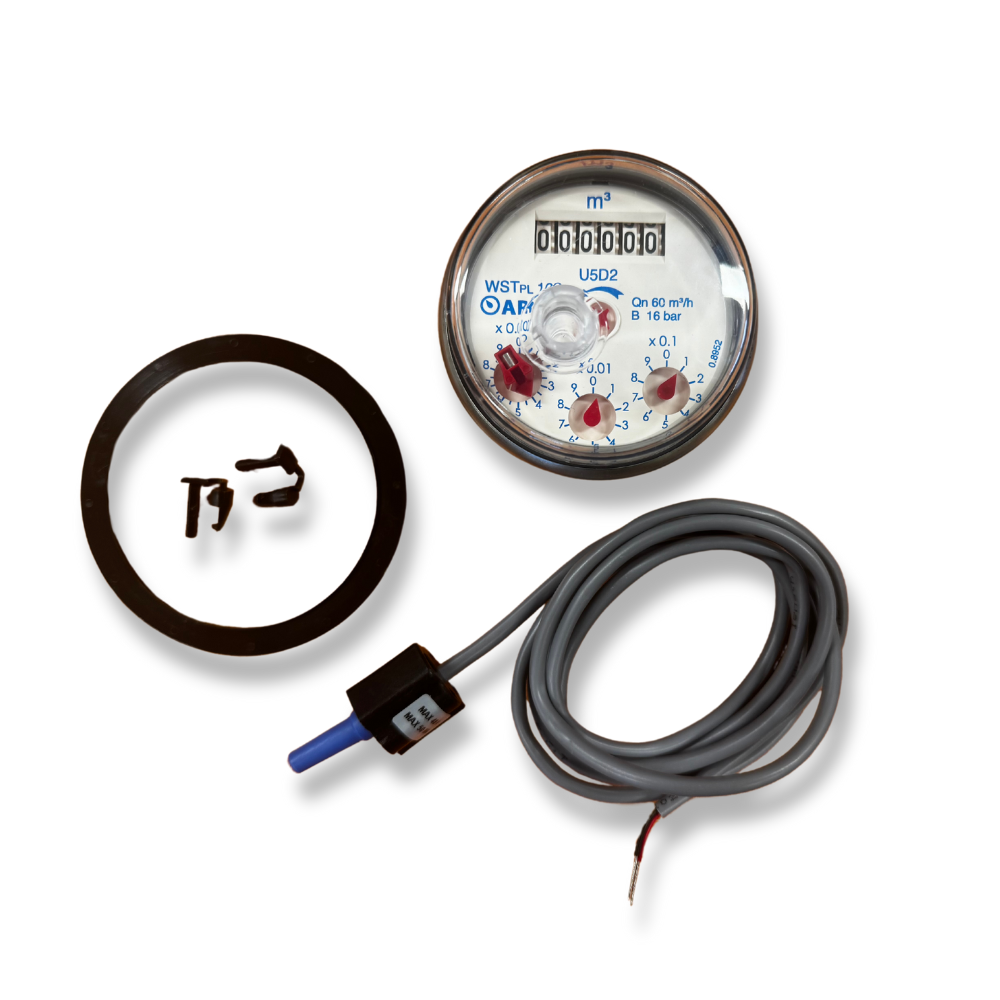

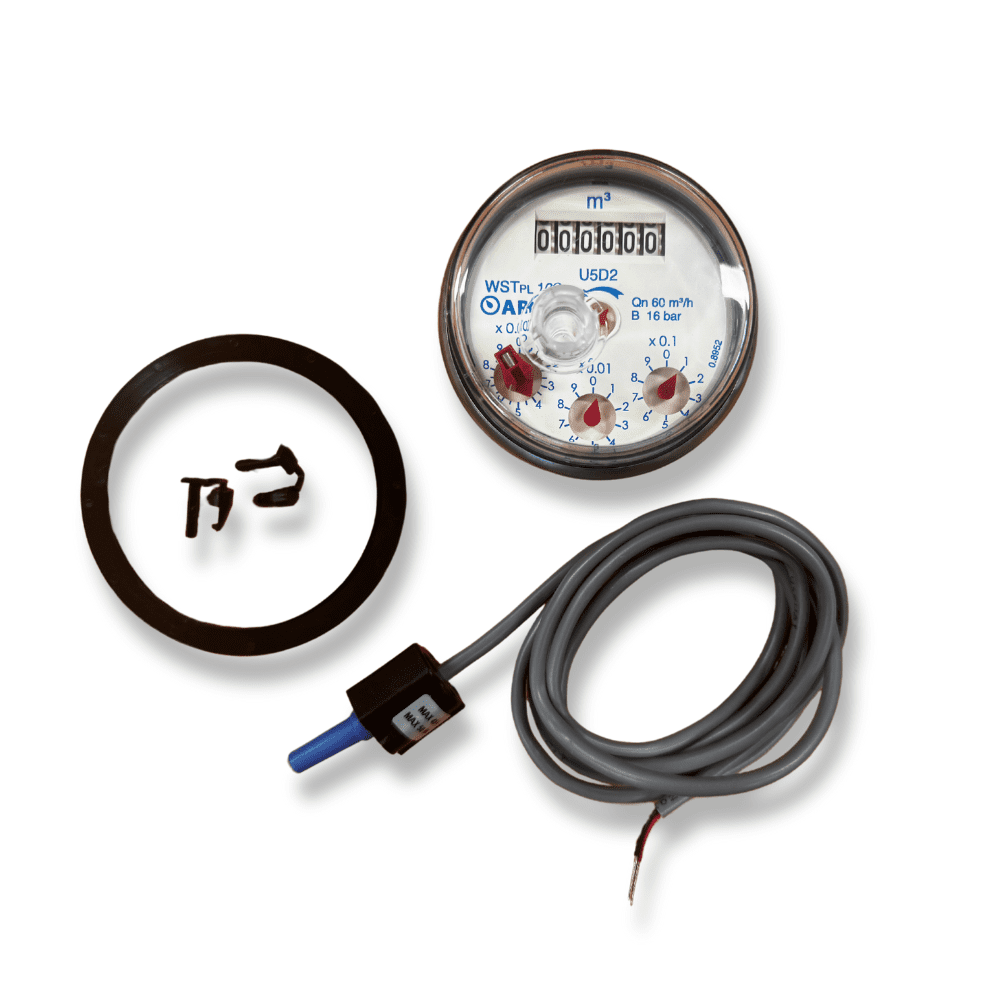

ARAD WST Pulse Kit

The ARAD WST pulse kit is essential for connecting your meter to an BMS system. To install, replace the existing dial with the pulse-ready dial that includes a convenient mounting point for the pulse lead.
This ARAD pulse kit can be retrofitted while the meter remains inline, eliminating the need to shut off the water supply.

Note: New Short Body ARAD WST meters come standard with a pulse kit pre-installed.

Maximum Switch Voltage 30V DC
Maximum Switched Current 50mA

Connection

Black Wire Common/Ground (always used)
Red Wire Return Line (normally used)

ARAD WST water meter can be found here



Part Number Description Size Quantity
PK-50WST-10 ARAD WST Pulse Kit -10L Pulse 50mm

PK-65WST-10 ARAD WST Pulse Kit - 10L Pulse 65mm

PK-80WST-10 ARAD WST Pulse Kit - 10L Pulse 80mm

PK-100WST-10 ARAD WST Pulse Kit - 10L Pulse 100mm

PK-150WST-100 ARAD WST Pulse Kit - 100L Pulse 150mm

PK-200WST-1K ARAD WST Pulse Kit - 1000L Pulse 200mm
