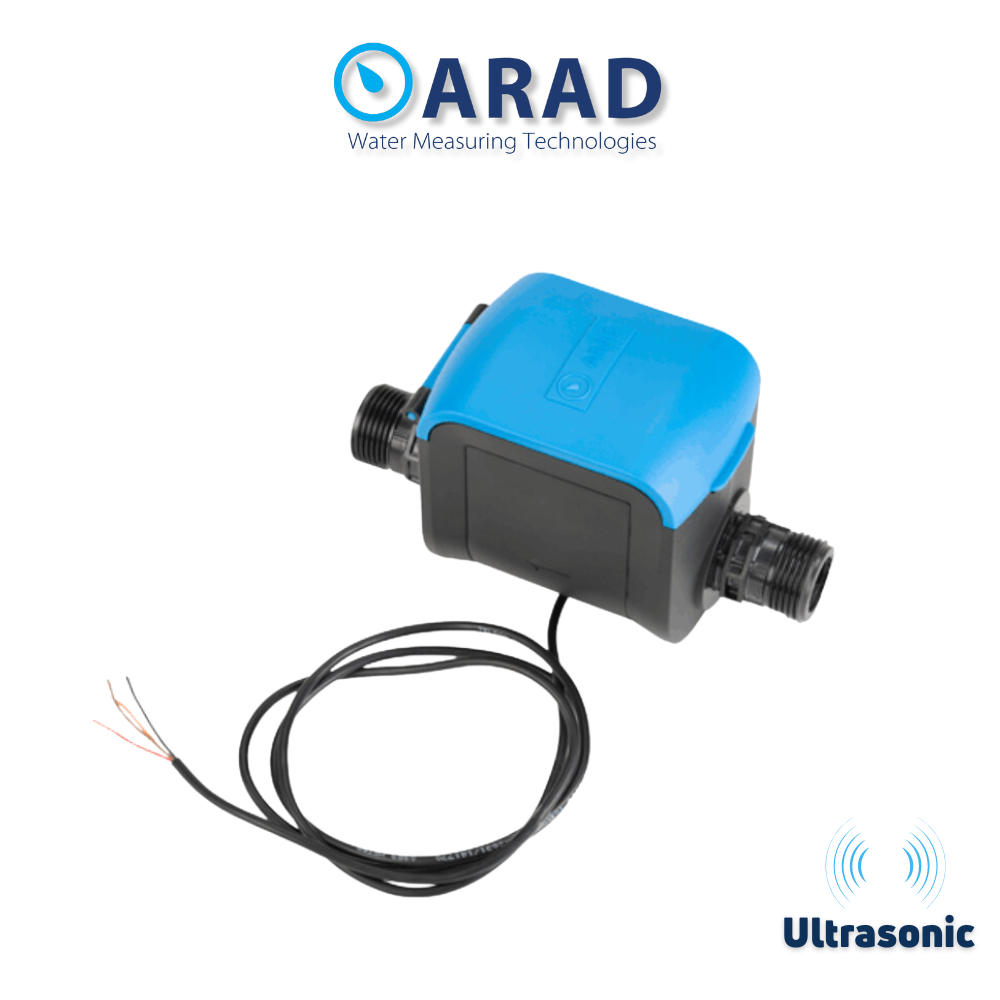

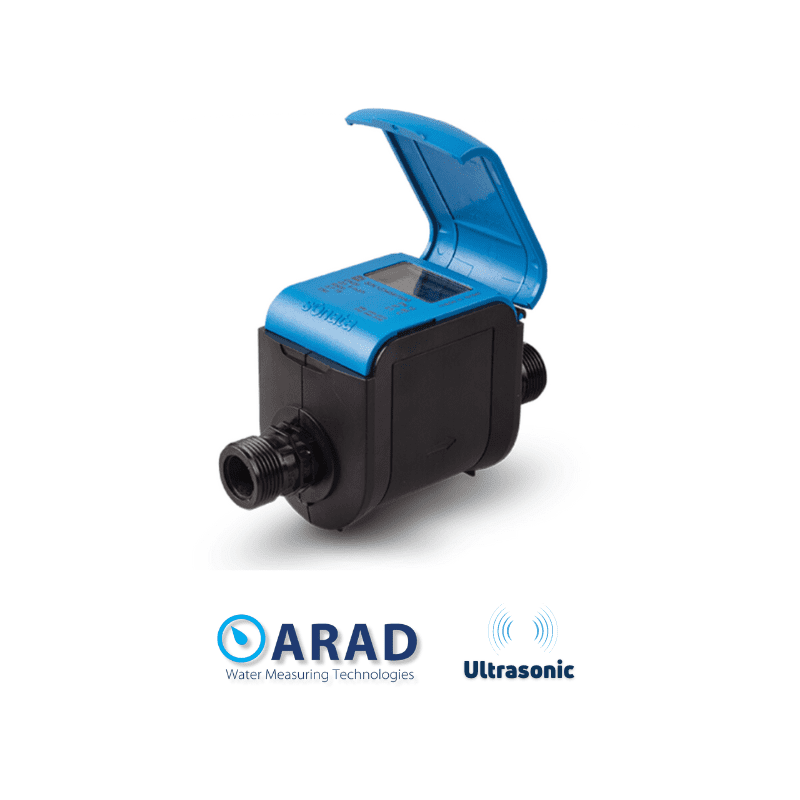

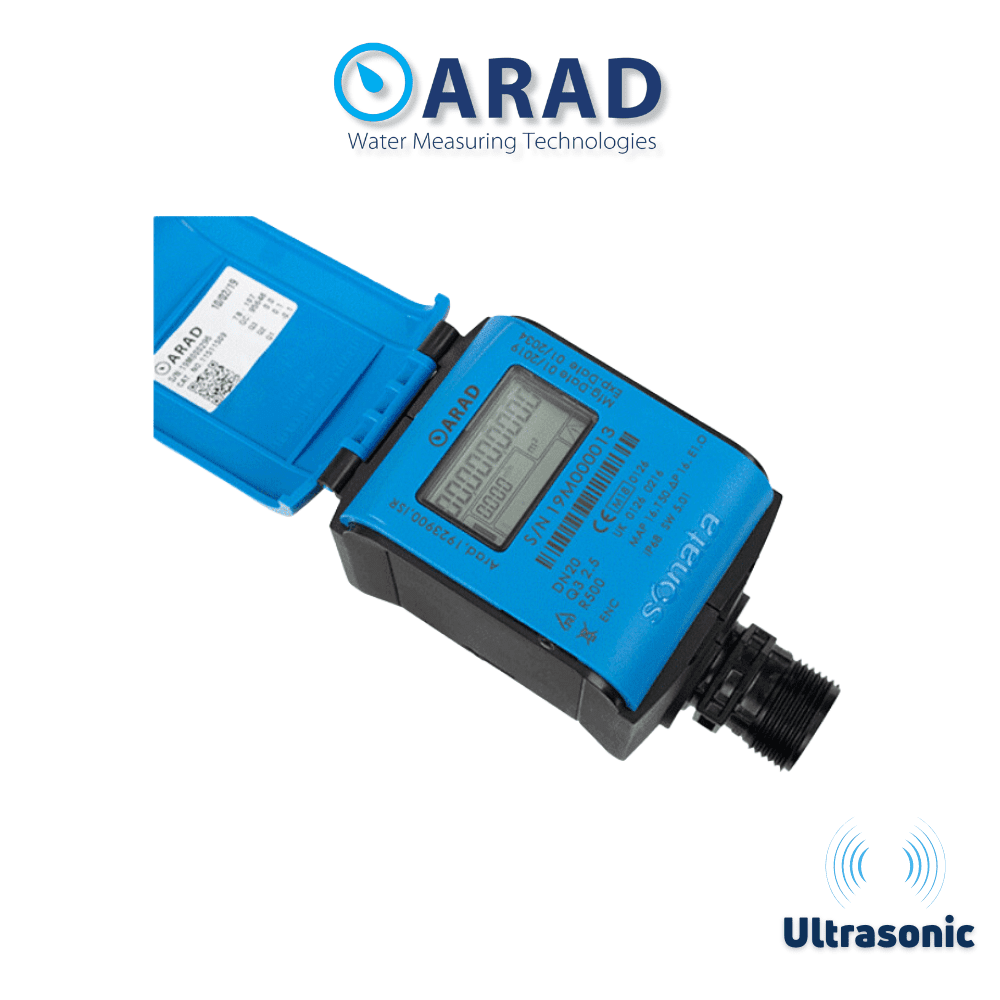

ARAD Sonata Ultrasonic Water Meter
The Sonata is an advanced and highly accurate ultrasonic water meter and data end-point for industrial and irrigation applications. With no moving parts, the Sonata’s robust design ensures reliable and long-lasting precision.
Its technology enables the measurement of even the lowest of flow rates, making it the best solution for addressing NRW (Non-Revenue Water).
Note: The Sonata is not watermarked.
Features
- Unique “free passage” (see-through) design- patent pending
- Ultrasonic technology for precise and ultra reliable metering
- No moving parts
- Excellent long-term stability and reliability
- Battery powered -up to 15 years life expectancy
- Rugged mechanical design – Submersible (IP68)
- Extremely sensitive and accurate in low flows, down to 2l/h
- Wide measurement range- R500
- Bi-directional flow measurements
- Flexible data formats including flow directions, flow rates and volumes
- Multi-line LCD
- Programmable Display (units and outputs resolution)
- Lead free, RoHS
Standards
- MID 2014/32/EU (based on OIML R49:2013, EN 14154 and ISO 4064:2014)
- NSF61 and NSF372
- ACS
- WRAS 1307073/ 1504700
- KTW
- BELGAQUA
- IP68
