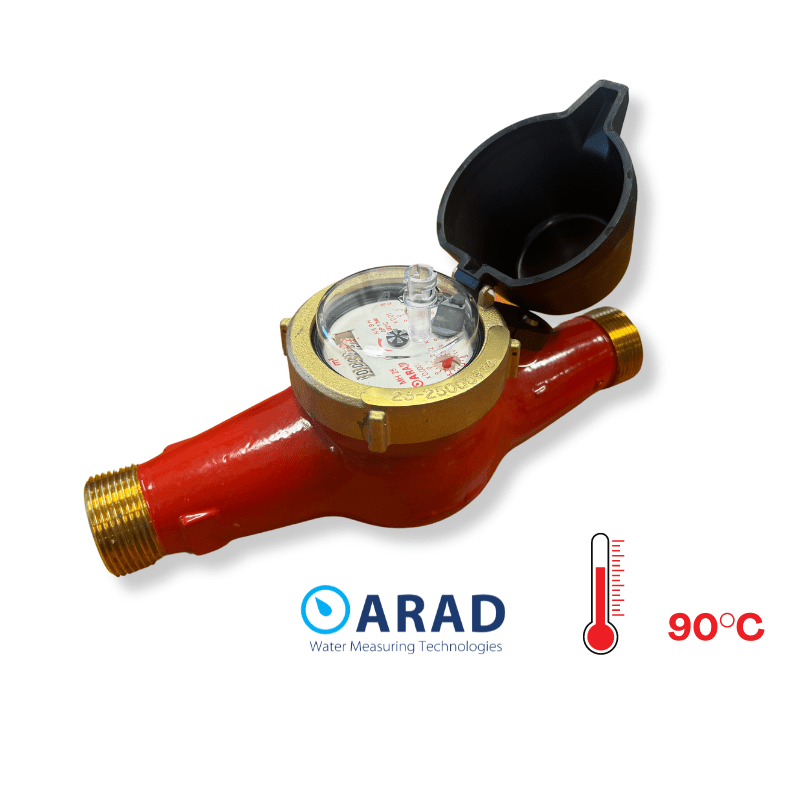

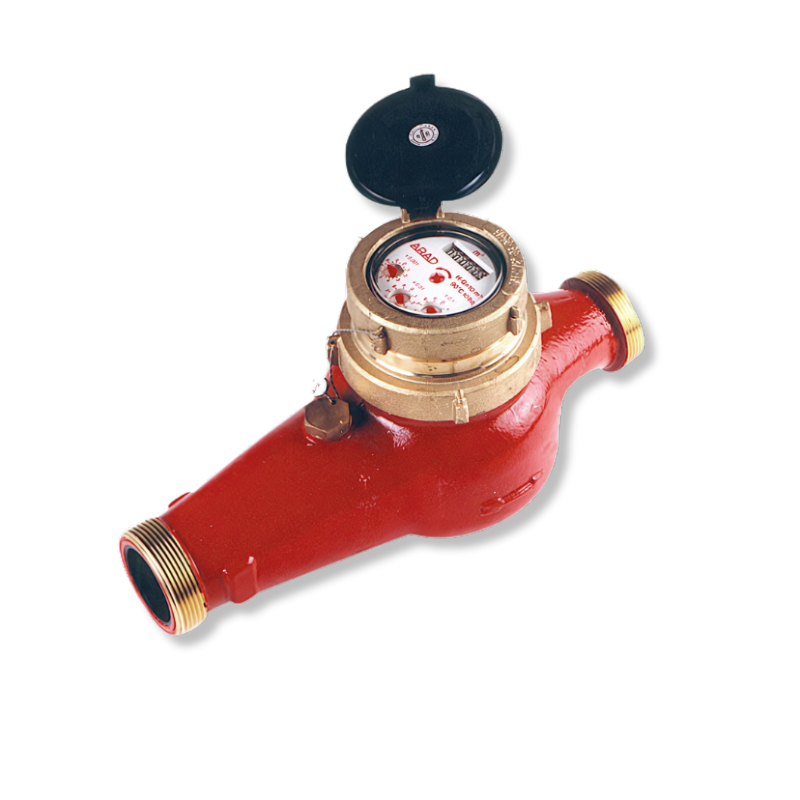

ARAD Hot Water Meter
The ARAD Hot Water Meter is used for hot water applications up to 90ºC.
Hot Water Multi-Jet meters are available from 15mm to 50mm.
Water meters using the multi-jet principle are the best cost/performance, long life, flow measurement instruments.
Wide clearances in the measuring chamber and negligible area of contact between static and moving parts are the main reasons for the high reliability of this design even in hard water.
Note: The ARAD Hot Water Meters are not watermarked.
Features
- MultiJet Technology
- For water up to 90ºC

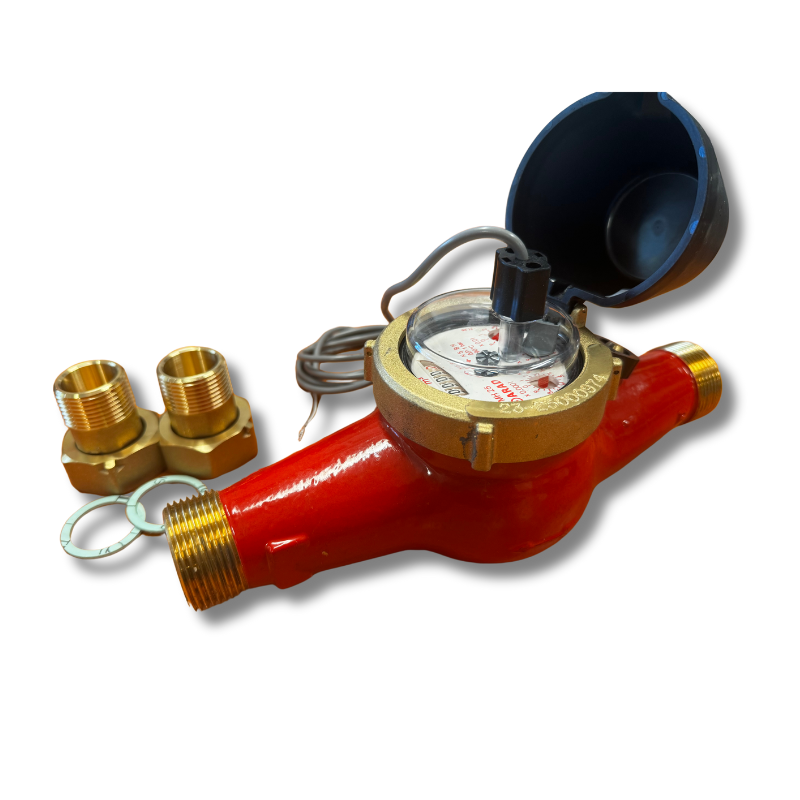

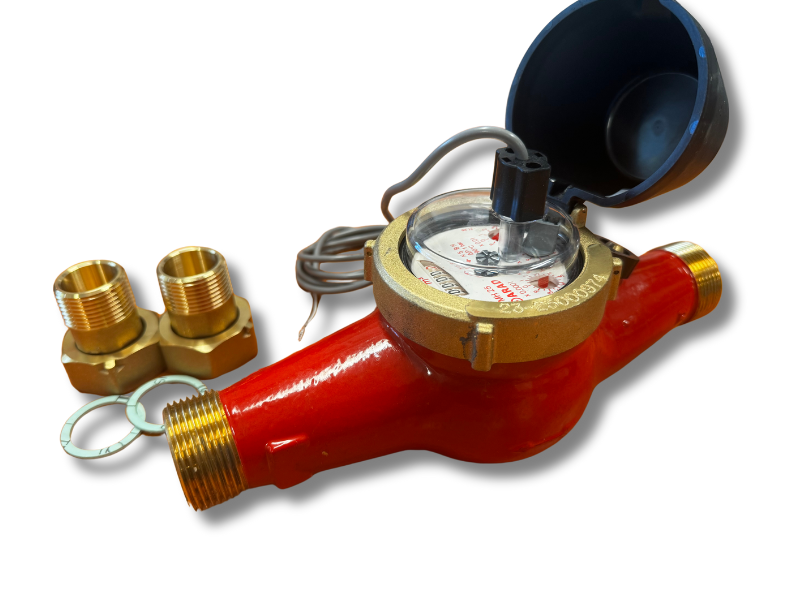

- Comes with couplings and Reed Switch
- Conforms to European standards
- Only one moving part – the impeller – in contact with the water for minimum wear and utmost reliability
- Magnetically driven sealed registers. Stainless steel/glass
encapsulated option is unconditionally guaranteed against fogging
Standards
- MID 2014/32/EU (based on OIML R49:2013, EN 14154 and ISO 4064:2014
- WRAS 1307073/ 1504700
